Autonomy, power,
design and precision.
iNubaBox is the premium solution of the iNuba ecosystem. An autonomous 3D measurement cabin that offers the most complete and immersive experience for high-volume centers.
iNubaBox fits where
volume demands.
For high-volume centers that need autonomous, immersive measurement without requiring a professional present at every session.
High-volume measurement centers
Facilities that need the highest measurement capacity with minimal staff intervention.
Hospitals and reference medical centers
Hospital environments that require autonomous measurement integrated into the clinical workflow.
Hospitality & Wellbeing
Locations that want to enhance the health care of their clients.
Professionals who embrace technology
The innovation that sets you apart from the rest.
Cutting-edge client experience
Every interaction with your patient, designed to be remembered.
Design and luxury
Designed for those places where not only technology matters, but also design and the visual experience.
Minimalist and elegant
exterior
Designed to naturally attract clients.
Spacious and welcoming
interior
A space designed to make the patient feel comfortable and guide them through each step of the measurement, autonomously and without assistance.
One position,
three systems
One single position. 3 systems acting in sync. All guided by audio, lights and video.
Two screens
that guide the client
The exterior screen explains what will happen inside and guides the onboarding before entry. The interior screen leads the patient step by step throughout the entire measurement.
Unique in its
capabilities
Only iNuba integrates 3D volumetry, octopolar bioimpedance and thermography in a single autonomous cabin. A platform without equivalent on the market that generates over 800 biometric variables in each scan.
Three measurement systems,
a single experience.
The iNubaBox brings together 3D volumetry, octopolar bioimpedance and thermography in a single autonomous cabin, designed for the most complete and immersive measurement experience.
3D body reconstruction
Three-dimensional body model up to 4K UHD. Captures measurements and volumes that no measuring tape can provide.
- up to 4K UHD (3840×2160) · configurable 2K or 4K
- Millimeter precision in every measurement
- Automated futuristic experience
- Full body parametrisation
- Perimeters, segments, areas, volumes, asymmetries...
- >200 parameters measured directly
Octopolar bioimpedance
Segmental body composition analysis: muscle mass, fat, intra and extracellular water with 7 configurable measurement frequencies.
Provides more data than the premium equivalent from competitors, including key body composition values: reactance, phase angle and resistance.
With iNuba's proprietary and pioneering "3D-Mapping" technology, which generates greater reliability and precision by combining the 3D avatar and volumetry with bioimpedance.
Performs 35 bioelectrical impedance measurements (Z) using 7 configurable frequencies across 5 body segments: Right Arm, Left Arm, Trunk, Right Leg and Left Leg.
- 8 electrodes on hands and feet simultaneously
- Muscle mass per body segment
- Visceral, subcutaneous and total fat
- Intracellular and extracellular water
- Phase angle as a cellular health marker
- 7 configurable measurement frequencies (8–1000 kHz)

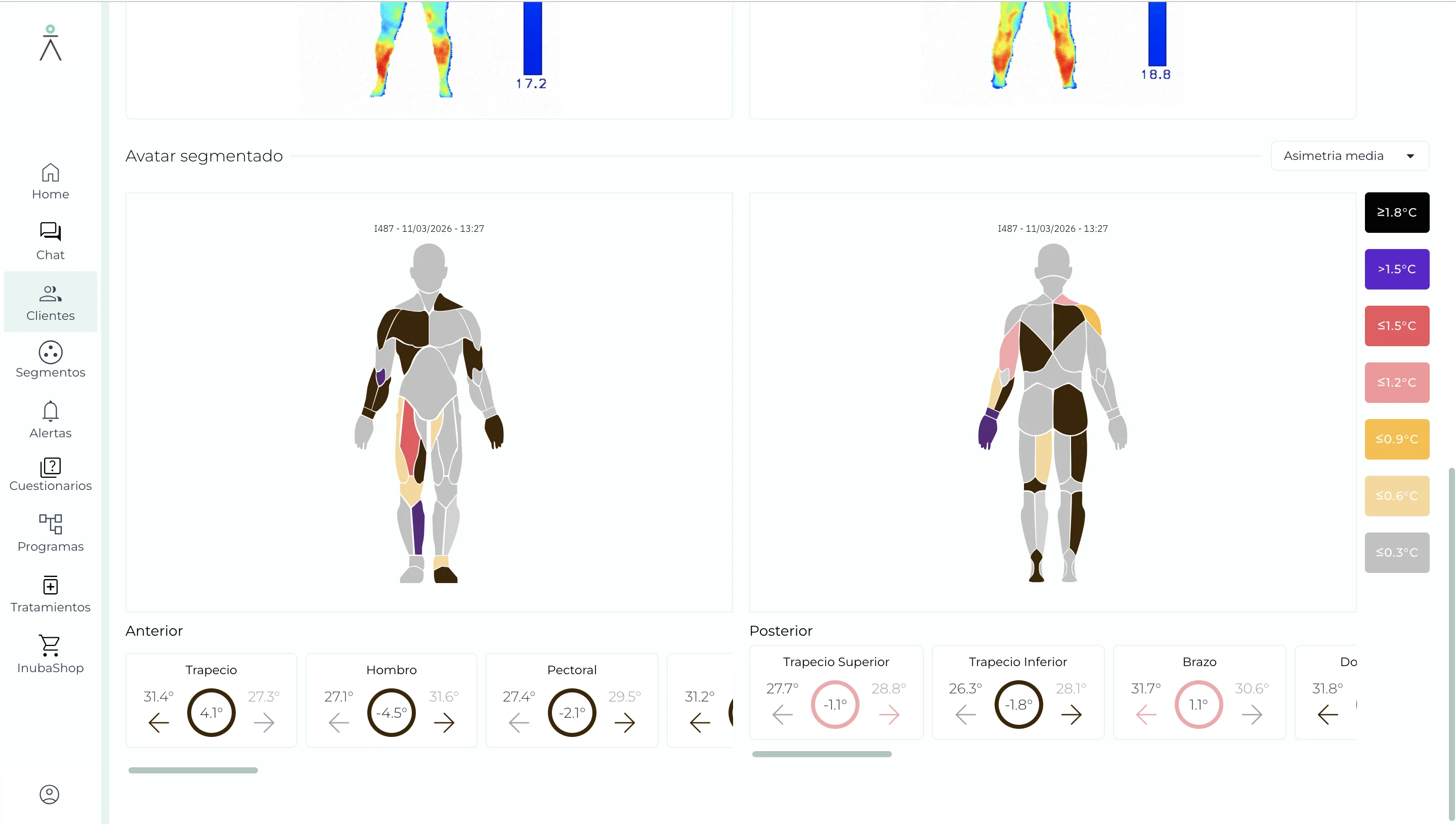

Infrared thermography
Integrated thermal camera that detects skin temperature asymmetries and inflammation zones, useful for clinical follow-up and prevention.
- Full-body thermogram (680×480 pixels)
- Automatic body segmentation
- 133 ROIs (Regions of Interest)
- 399 parameters measured directly (Max, Avg and Min T° per ROI)
- Advanced per-test analysis and history in iNuba Clinic
- Filtering and processing in injury areas
- Automated alerts to facilitate analysis and follow-up
iNubaBox is not a standalone device.
It is part of your system.
Every iNubaBox measurement travels automatically to iNuba Clinic. No file exporting, no double data entry, no information lost along the way.
- ✓ Data appears in the patient record instantly
- ✓ Progress history accessible from any device
- ✓ Automatic reports for the professional and the patient
- ✓ Configurable alerts when relevant changes occur
The patient enters the iNubaBox cabin
The process takes 120 seconds. The cabin guides the patient autonomously, with no technical professional present.
The system captures all three technologies
3D body, bioimpedance and thermography simultaneously and in a standardised way.
Data is synchronised with iNuba Clinic
Automatically. The professional sees the results in their dashboard without any additional action.
The patient receives their report on their phone
Results compared with the previous measurement, trend and professional recommendations.

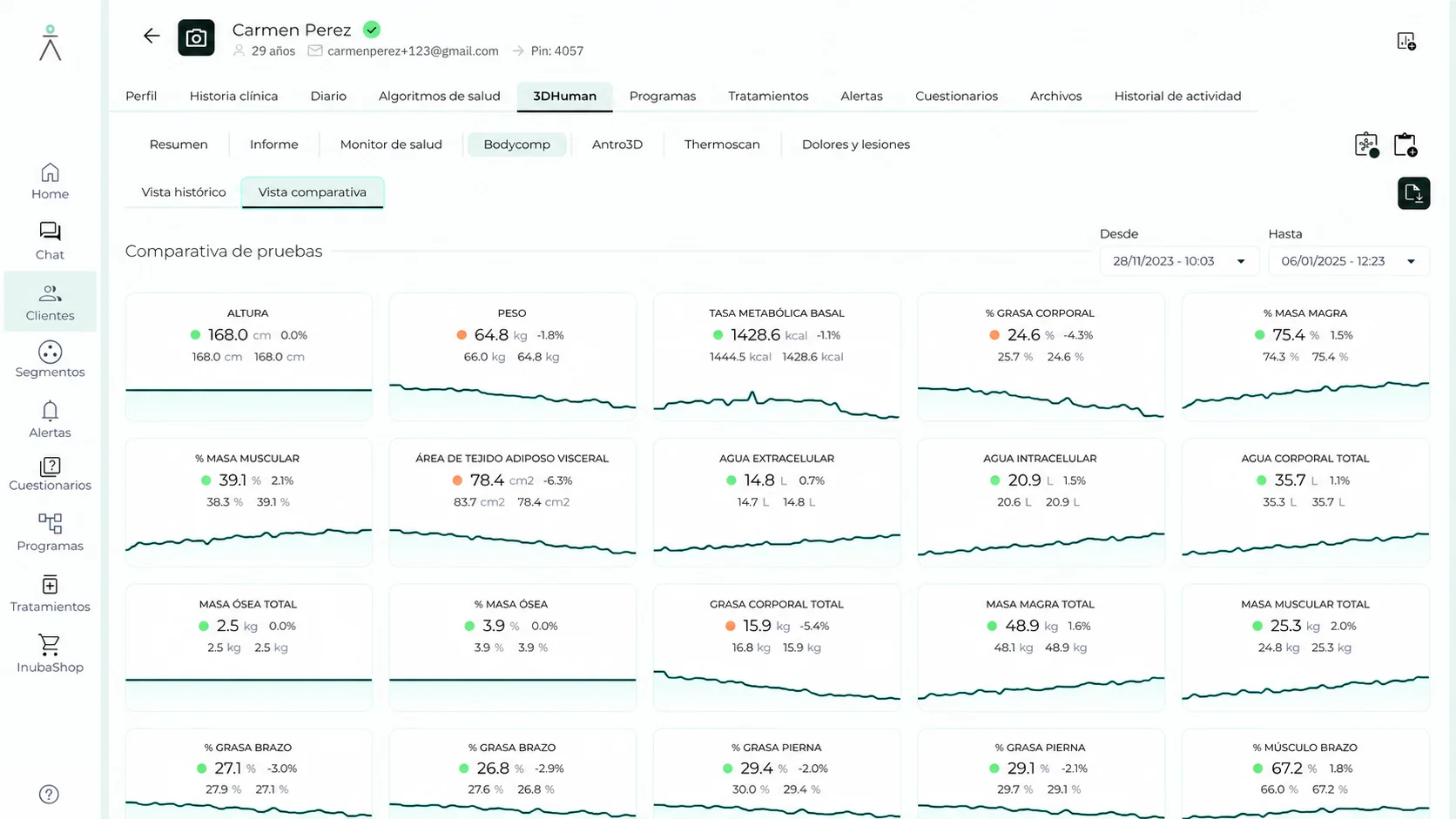

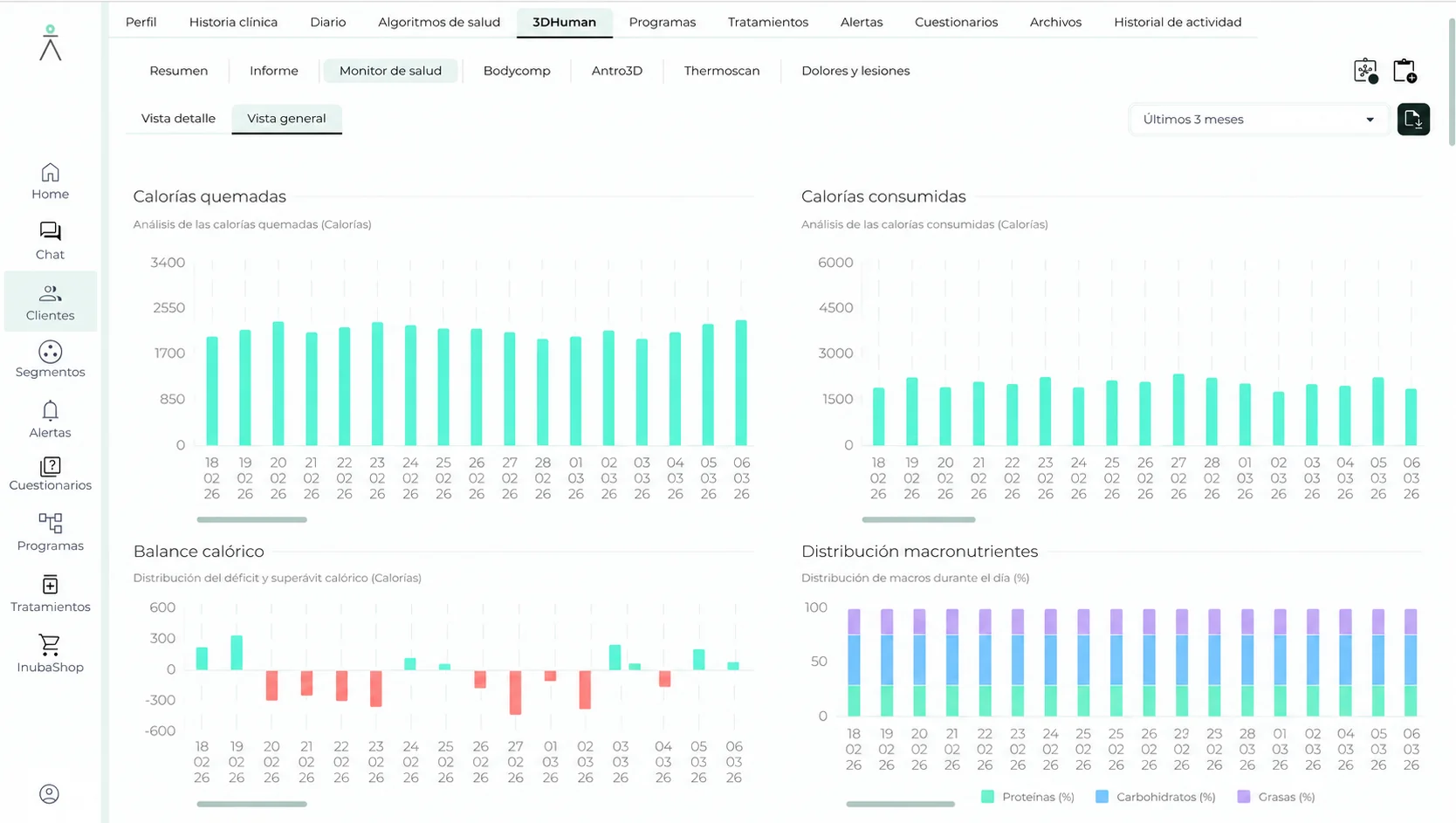

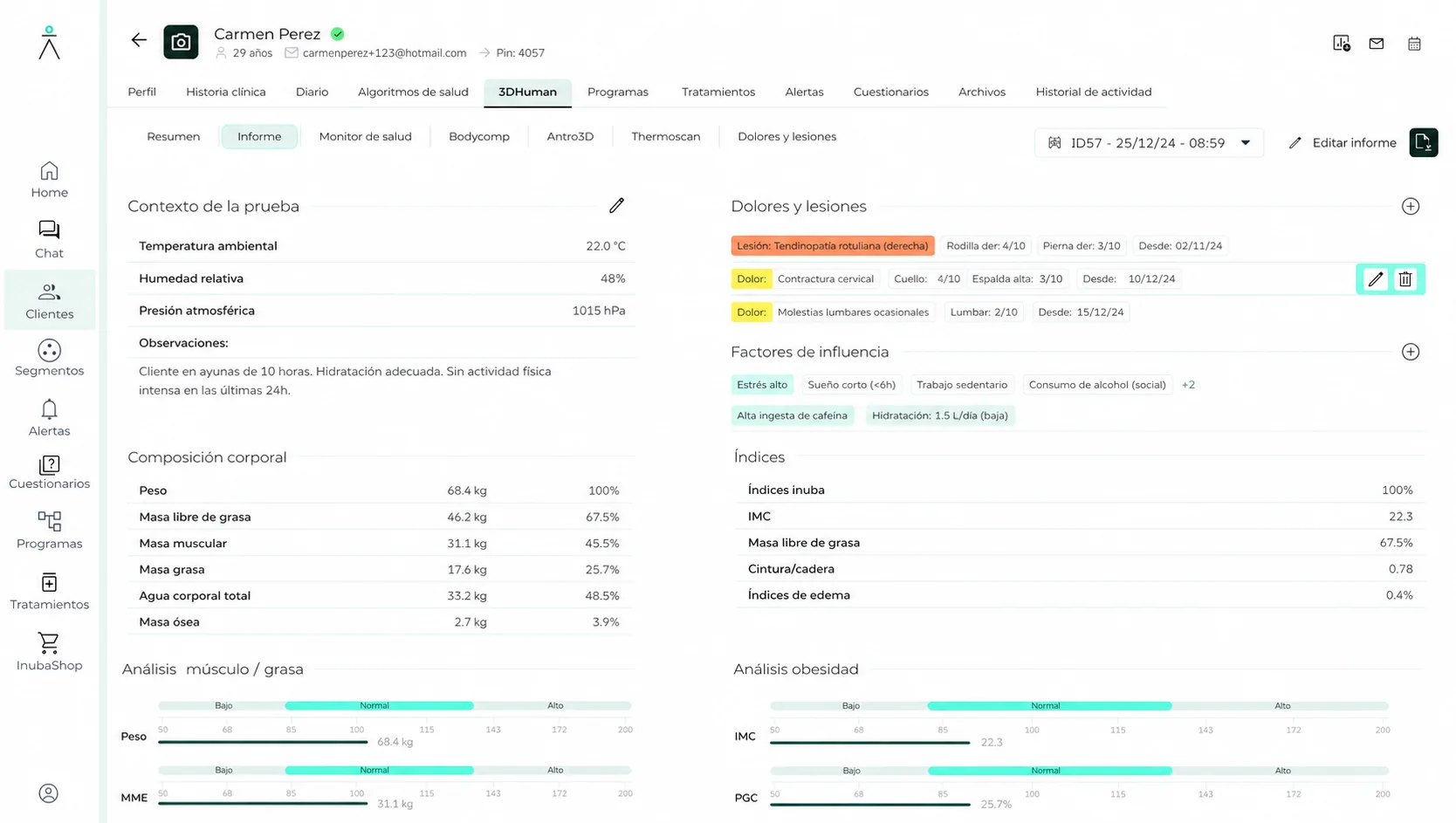

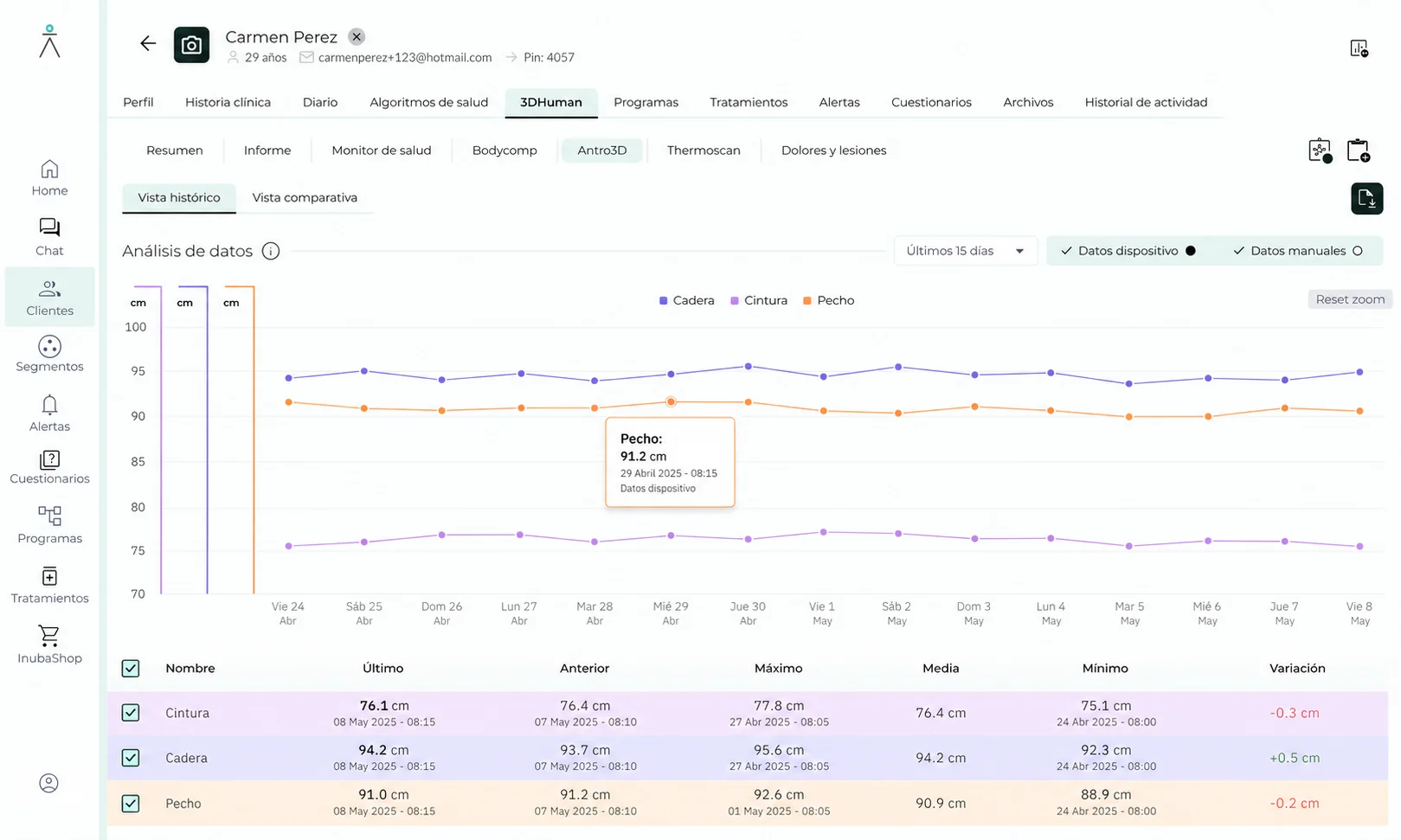

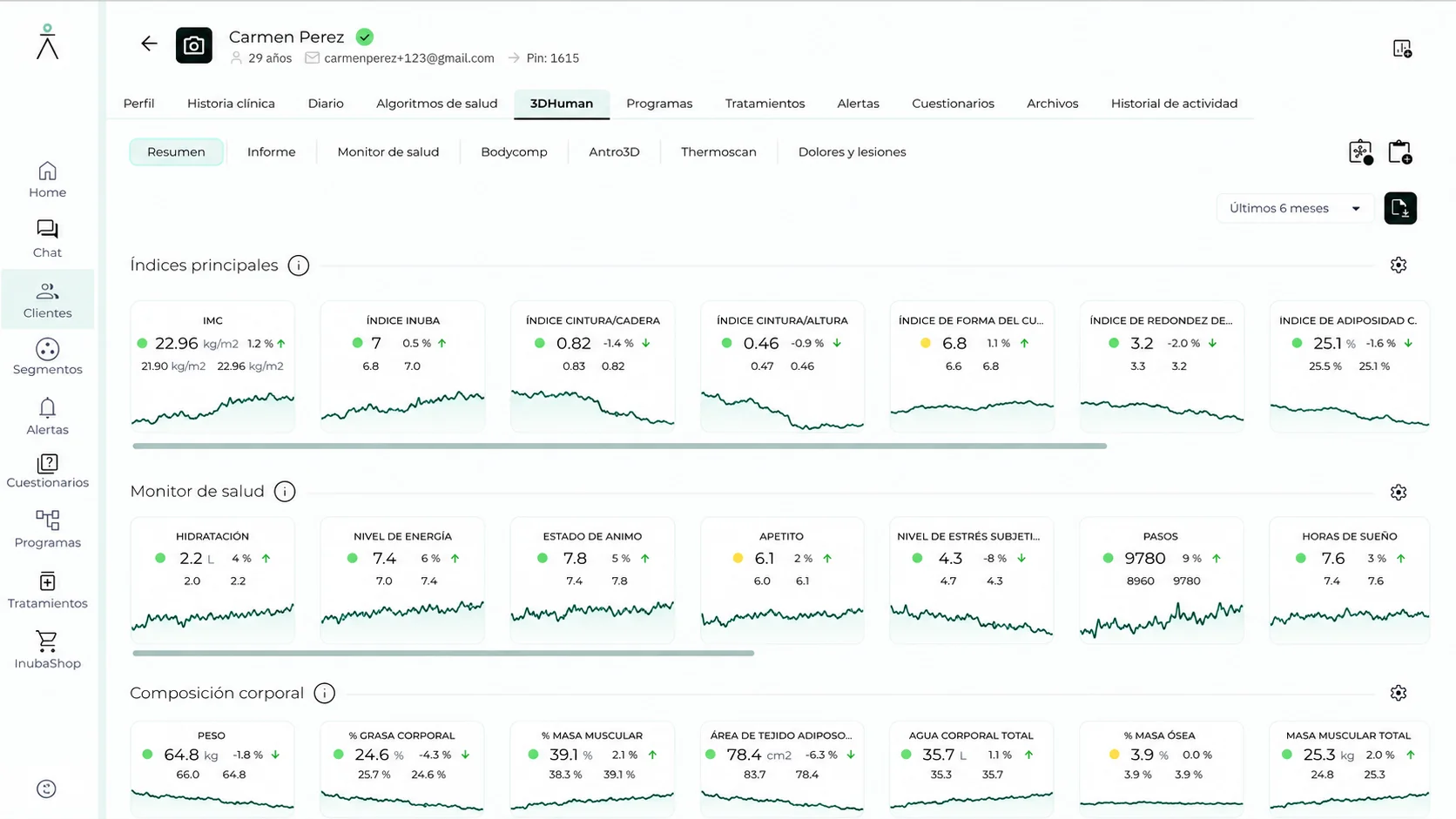

How the professional sees the patient's data
Every iNubaBox measurement reaches the clinical panel instantly. Six specialised views to understand your patient's health status in depth.
NEO, PRO or BOX? Choose based on your volume.
If your center has a high measurement volume, needs higher thermography resolution or advanced body composition analysis, PRO or BOX may be your option.
 |
|
 |
|
|---|---|---|---|
| iNuba Totem NEO | iNuba Totem PRO | iNubaBox | |
| Learn more | Learn more | Request Demo | |
| General | |||
| Installed dimensions | W 80cm / H 210cm / L 200cm | W 80cm / H 210cm / L 200cm | W 194cm / H 249cm / L 266cm |
| Weight | 70 kg | 70 kg | 556 kg |
| Connectivity | Dual-band WiFi | Dual-band WiFi | WiFi + 4G/LTE |
| Total scan time | 90 sec | 90 sec | 90 sec |
| Octopolar bioimpedance | |||
| No. of frequencies | 5 | 7 | 7 |
| Configurable frequencies | No | Yes | Yes |
| Measurement duration | 30 sec | 30–50 sec | 30–50 sec |
| Thermography | |||
| Resolution | 382×288 px | 680×480 px | 680×480 px |
| Accuracy | ±2% | ±1.5% | ±1.5% |
| NETD sensitivity | 50 mK | 40 mK | 40 mK |
| 3D Reconstruction | |||
| Resolution | 2K FHD | 4K UHD | 4K UHD |
| Depth error | <1.5% | <1% | <1% |
| Configurable resolution | Fixed 2K | 2K or 4K | 2K or 4K |
| CUDA cores | 4608 | 6144 | 6144 |
| Computing power (Graphics card) | 8GB GPU (488 GB/s) | 12GB GPU (672 GB/s) | 12GB GPU (672 GB/s) |
| Reconstruction time | 4:00 (2K) | 2:45 (2K) · 4:10 (4K) | 2:45 (2K) · 4:10 (4K) |
Does iNubaBox fit
your center?
In 30 minutes we analyse your needs, your space and your workflow. Our experts will help you choose the right option.
NO COMMITMENT
