iNubaBox
The most complete autonomous 3D measurement cabin in the iNuba ecosystem
Scroll to discover

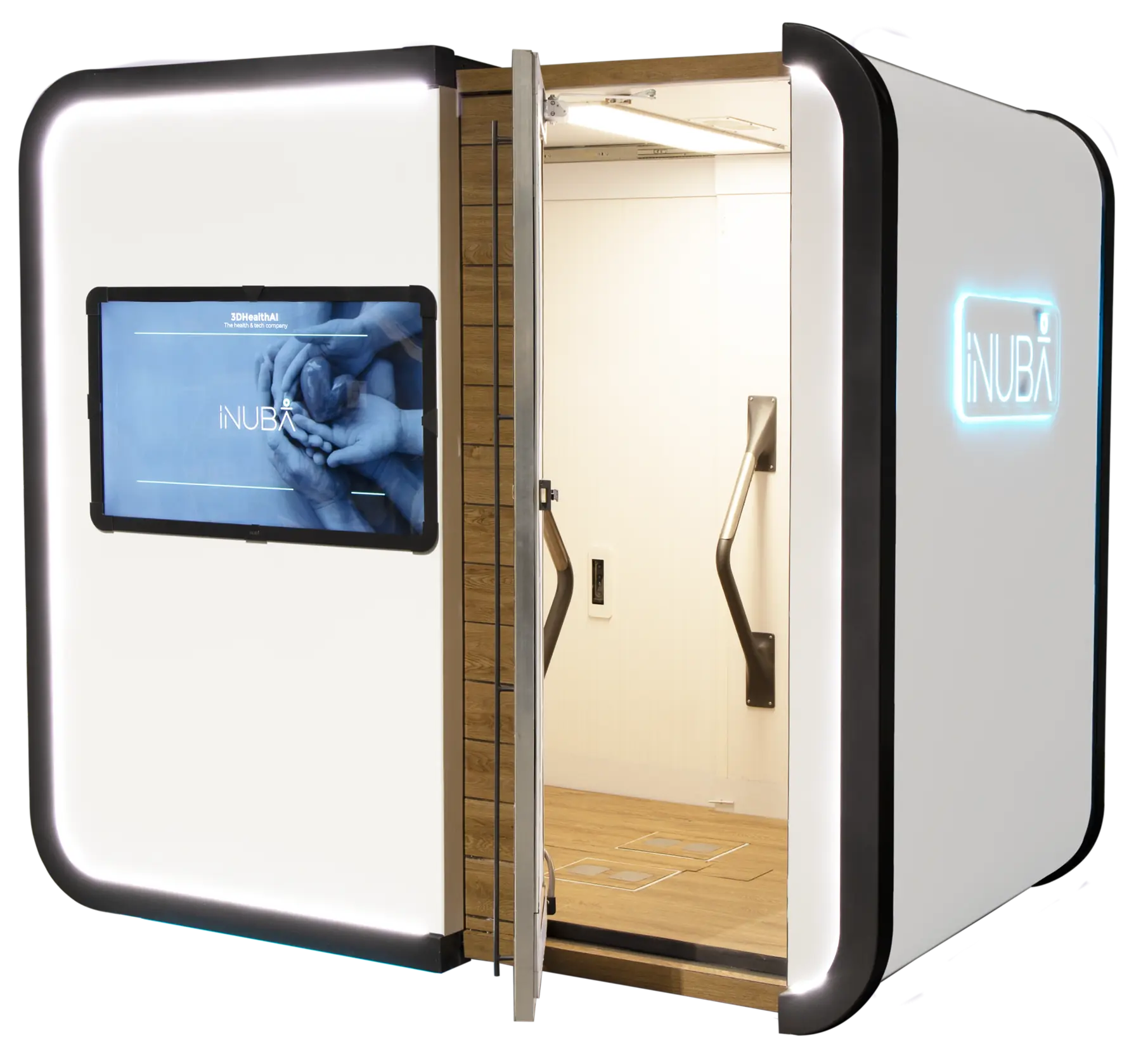

iNubaBox is the premium solution of the iNuba ecosystem. An autonomous 3D measurement cabin that offers the most complete and immersive experience for high-volume centers.
For high-volume centers that need autonomous, immersive measurement without requiring a professional present at every session.
Facilities that need the highest measurement capacity with minimal staff intervention.
Hospital environments that require autonomous measurement integrated into the clinical workflow.
Locations that want to enhance the health care of their clients.
The innovation that sets you apart from the rest.
Every interaction with your patient, designed to be remembered.
Designed for those places where not only technology matters, but also design and the visual experience.
Designed to naturally attract clients.
A space designed to make the patient feel comfortable and guide them through each step of the measurement, autonomously and without assistance.
One single position. 3 systems acting in sync. All guided by audio, lights and video.

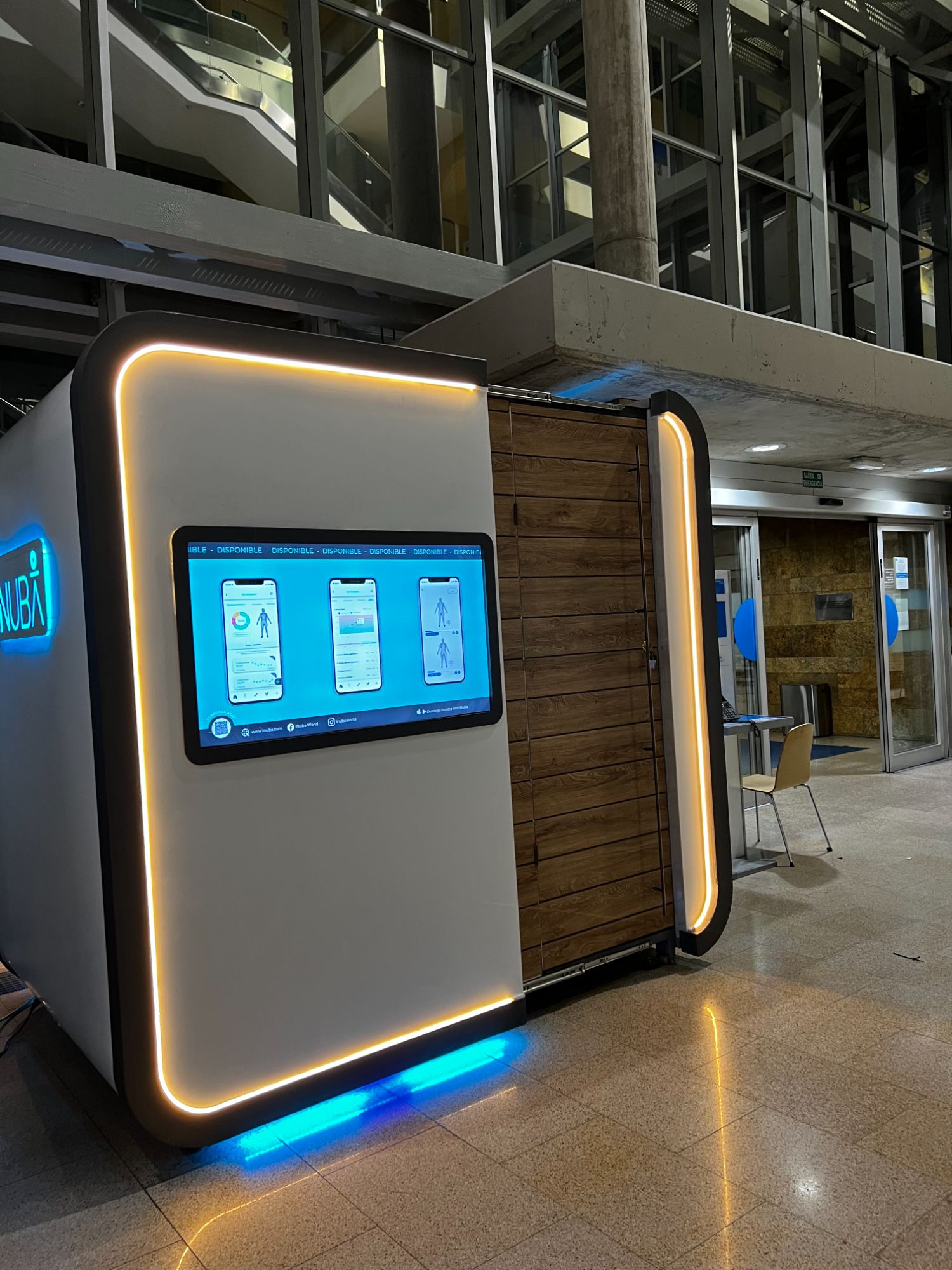

The exterior screen explains what will happen inside and guides the onboarding before entry. The interior screen leads the patient step by step throughout the entire measurement.
Only iNuba integrates 3D volumetry, octopolar bioimpedance and thermography in a single autonomous cabin. A platform without equivalent on the market that generates over 800 biometric variables in each scan.
The Totem NEO combines advanced clinical technologies in a compact format that installs in any space in less than a day.
Three-dimensional body model up to 4K UHD. Captures measurements and volumes that no measuring tape can provide.
Segmental body composition analysis: muscle mass, fat, intra and extracellular water with 7 configurable measurement frequencies.
Provides more data than the premium equivalent from competitors, including key body composition values: reactance, phase angle and resistance.
With iNuba's proprietary and pioneering "3D-Mapping" technology, which generates greater reliability and precision by combining the 3D avatar and volumetry with bioimpedance.
Performs 35 bioelectrical impedance measurements (Z) using 7 configurable frequencies across 5 body segments: Right Arm, Left Arm, Trunk, Right Leg and Left Leg.
Integrated thermal camera that detects skin temperature asymmetries and inflammation zones, useful for clinical follow-up and prevention.
Every iNubaBox measurement travels automatically to iNuba Clinic. No file exporting, no double data entry, no information lost along the way.
The process takes 120 seconds. The cabin guides the patient autonomously, with no technical professional present.
3D body, bioimpedance and thermography simultaneously and in a standardised way.
Automatically. The professional sees the results in their dashboard without any additional action.
Results compared with the previous measurement, trend and professional recommendations.
Every iNubaBox measurement reaches the clinical panel instantly. Six specialised views to understand your patient's health status in depth.
If your center has a high measurement volume, needs higher thermography resolution or advanced body composition analysis, PRO or BOX may be your option.
 |
|
 |
|
|---|---|---|---|
| iNuba Totem NEO | iNuba Totem PRO | iNubaBox | |
| Learn more | Learn more | Request Demo | |
| General | |||
| Installed dimensions | W 80cm / H 210cm / L 200cm | W 80cm / H 210cm / L 200cm | W 194cm / H 249cm / L 266cm |
| Weight | 70 kg | 70 kg | 556 kg |
| Connectivity | Dual-band WiFi | Dual-band WiFi | WiFi + 4G/LTE |
| Total scan time | 90 sec | 90 sec | 90 sec |
| Octopolar bioimpedance | |||
| No. of frequencies | 5 | 7 | 7 |
| Configurable frequencies | No | Yes | Yes |
| Measurement duration | 30 sec | 30–50 sec | 30–50 sec |
| Thermography | |||
| Resolution | 382×288 px | 680×480 px | 680×480 px |
| Accuracy | ±2% | ±1.5% | ±1.5% |
| NETD sensitivity | 50 mK | 40 mK | 40 mK |
| 3D Reconstruction | |||
| Resolution | 2K FHD | 4K UHD | 4K UHD |
| Depth error | <1.5% | <1% | <1% |
| Configurable resolution | Fixed 2K | 2K or 4K | 2K or 4K |
| CUDA cores | 4608 | 6144 | 6144 |
| Computing power (Graphics card) | 8GB GPU (488 GB/s) | 12GB GPU (672 GB/s) | 12GB GPU (672 GB/s) |
| Reconstruction time | 4:00 (2K) | 2:45 (2K) · 4:10 (4K) | 2:45 (2K) · 4:10 (4K) |
In 30 minutes we analyse your needs, your space and your workflow. Our experts will help you choose the right option.
NO COMMITMENT
